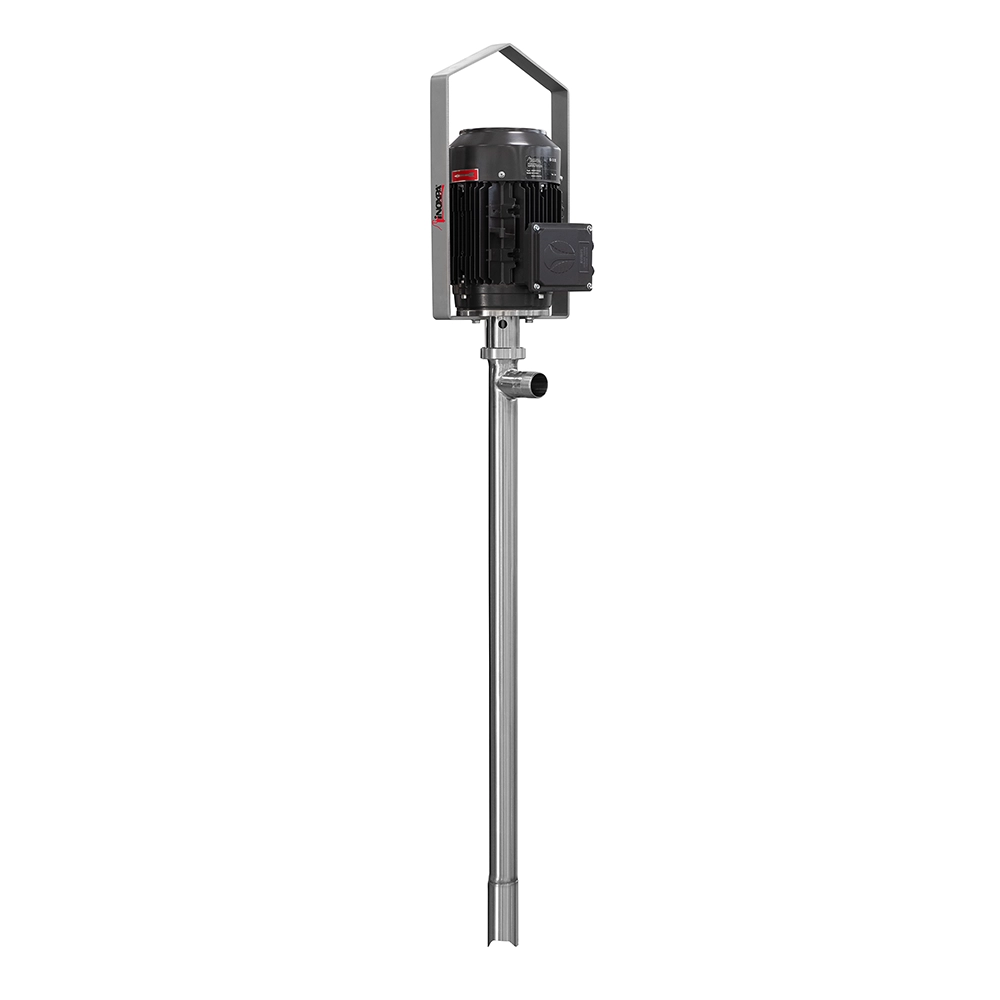

The KVB-25 pumps are hygienic vertical progressive cavity pumps. Drum pumps are specially designed to transfer media of either high or low viscosity from tanks and barrels by means of a pump tube introduced into the drum.
Some of the most important applications of this pump type is transferring of fruit concentrates for the beverage production, tomato concentrate for the ketchup production, transferring of creams, honey and other media of high viscosity.
Pumping is characterised by a gentle transfer of media with shear sensitive particles.
Operating principle
The pump tube is introduced into the drum with the media to transfer.
Friction between the stator and the rotor creates vacuum at the inlet of the pump thus facilitating the entry of the product into the pump.
The turning motion of the rotor makes the cavities between the rotor and the stator move forward and transport the product to the outlet.
Design and features
Vertical pump.
Internal single mechanical seal EN 12756 (DIN 24960 L1K).
Impulsion connection BSP 1 ½”.
Surface finish Ra<0,8 µm.
Pump tube diameter 54 mm.
Drive: Motor 1,5 kW 1000 rpm.
Pump support.
Materials
Parts in contact with the media: AISI-316L
Other stainless steel parts: AISI-304
Stator: black NBR (FDA certified)
Gaskets: NBR
Mechanical seal: SiC/SiC/FPM
Options
Stator: white NBR and EPDM (white or black).
Gaskets: EPDM (FDA certified) and FPM.
Mechanical seal: SiC/C.
Drive: motors at 900 rpm.
Drive: geared motor or variable speed drive.
Other connections (Clamp, DIN, SMS, RJT…).
