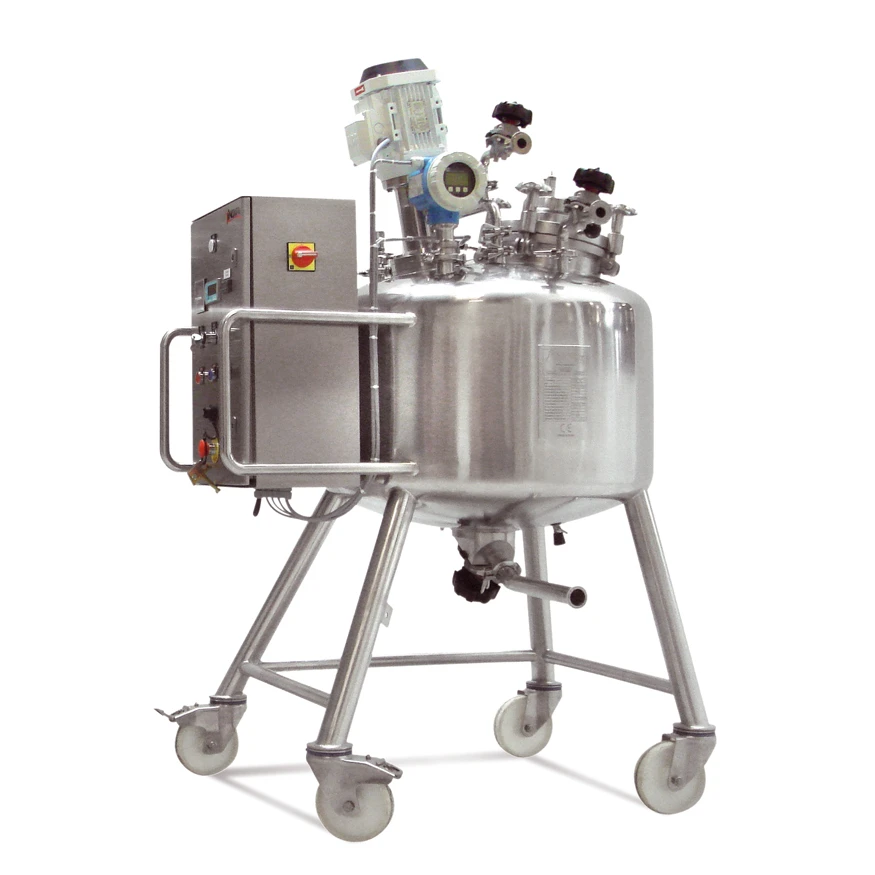

LIQUIDMIX is a range of equipment intended for the production of low viscous pharmaceutical products (water- or oil-based).
Operating principle
The tank is designed to operate under pressure and in vacuum. Product heating is provided by means of a heating jacket. The ingredients are introduced through the inlets at the top of the unit, manhole or through a valve at the bottom of the tank if the equipment operates in vacuum.
High-speed agitation is used to homogenise liquids or to dissolve highly soluble solids.
If the process requires an emulsion or a certain degree of shear, a cowler-type agitator or even a high shear mixer can be used.
It is possible to control the agitator speed and temperature from the control panel.
Design and features
The units consist of a tank with the Ra ≤ 0,5 μm surface finish of all the parts in contact with the product, clamp connections, the main component is a vertical anchor type agitator with a three-blade propeller provided with a double mechanical seal. CXC range.
Options
Possible steam sterilisation of the tank and seal chamber.
CIP cleanable design.
Sight-glass with light and sampling cock.
Bottom high shear mixer.
Additional cowler agitator.
Other sealing systems.
Various instrumentation and automation levels for the system control.
We provide: DESP97/23/CE conformity file and certificates of materials, surface roughness, etc.
